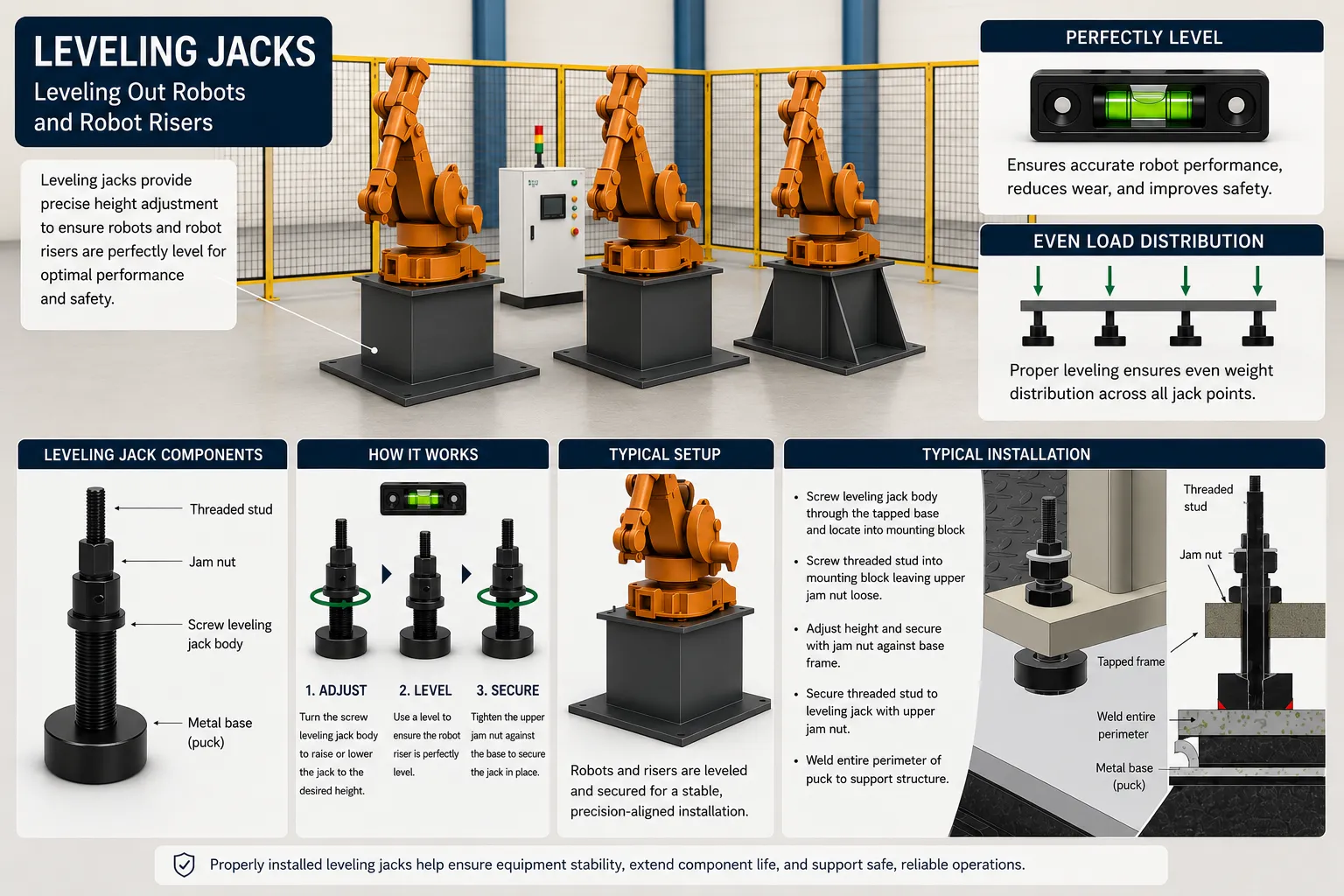

Metric Leveling Jacks

Choose a Metric Leveling Jack

Basic

Image details

Basic details

Customer supplied anchor and screw

Existing Base / Tap

Image details

Existing base/tap details

Existing holes in floor plate
Existing holes in machine base
Eliminates welding
Anchor, screw, washer, nut & base spherical washer
Minor misalignmnet adjustment

Weld Down

Image details

Weld down details

Fast field mount to existing machine bases and floor plates
Weldable spherical base
Minor misalignment adjustment
Eliminates re-welding and repainting after intergrator install

Epoxy Anchor

Image details

Epoxy anchor details

Spherical floor plate spreads load and allows for some mis-alignment.
Thru hole allows easy drilling thru entire assembly in place.
Number of floor holes cut in half.
No welding heat to compromise epoxy.
Epoxy compliant zinc plated anchor screw.

Integrator advantages

Reusable extra-long anchor bolt.
Floor is fixed when anchor bolt is cut off & ground.
Eliminates trip hazard.
Single part number ordering.
No welds to cut or re-paint.
Low cost.

Expansion Anchor

Image details

Expansion anchor details

Stud can be removed and reused
Spherical floor plate spreads load and allows for some mis-alignment.
Thru hole allows easy drilling thru entire assembly in place.
Number of floor holes cut in half.

Integrator advantages

Reusable threaded stud
Eliminates trip hazard.
Single part number ordering.
No welds to cut or re-paint.
Low cost.

E&E Special Products Metric Leveling Jacks: Features & Details / PDF & U.S. Standard sizes available

Part #	A Thread	B	C	D	E	F	LOAD CAP.	2D CAD	3D CAD	STP
EMLJ-2050-F	M20 x 1.5	50	13	38	28.6	10.3	1,453 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2050-C	M20 x 2.5	50	13	38	28.6	10.3	1,247 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2475-F	M24 x 2.0	75	16	38	28.6	14.2	2,377 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2475-C	M24 x 3.0	75	16	38	28.6	14.2	2,091 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3010-F	M30 x 2.0	100	16	38	41.3	14.2	4,704 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3010-C	M30 x 3.5	100	16	38	41.3	14.2	4,042 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3015-F	M30 x 2.0	150	16	38	41.3	14.2	4,704 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3015-C	M30 x 3.5	150	16	38	41.3	14.2	4,042 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3610-F	M36 x 3.0	100	16	57	41.3	22.2	7,507 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3610-C	M36 x 4.0	100	16	57	41.3	22.2	6,896 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3615-F	M36 x 3.0	150	16	57	41.3	22.2	7,507 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3615-C	M36 x 4.0	150	16	57	41.3	22.2	6,896 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3910-F	M39 x 3.0	100	16	57	41.3	22.2	9,584 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3910-C	M39 x 4.0	100	16	57	41.3	22.2	8,886 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3915-F	M39 x 3.0	150	16	57	41.3	22.2	9,584 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3915-C	M39 x 4.0	150	16	57	41.3	22.2	8,886 lbs.	2D CAD	3D CAD	STP FILE

Part#	A Thread	B	C	D	E	F	G	LOAD CAP.	2D CAD	3D CAD	STP
EMLJ-2050-CA	M20 x 2.5	50	13	38	28.6	10.3	M8 x 1.25 x 100	1,247 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2050-FA	M20 x 1.5	50	13	38	28.6	10.3	M8 x 1.25 x 100	1,453 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2475-CA	M24 x 3.0	75	16	38	28.6	14.2	M12 x 1.75 x 140	2,091 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2475-FA	M24 x 2.0	75	16	38	28.6	14.2	M12 x 1.75 x 140	2,377 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3010-CA	M30 x 3.5	100	16	38	41.3	14.2	M12 x 1.75 x 180	4,042 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3010-FA	M30 x 2.0	100	16	38	41.3	14.2	M12 x 1.75 x 180	4,704 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3015-CA	M30 x 3.5	150	16	38	41.3	14.2	M12 x 1.75 x 230	4,042 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3015-FA	M30 x 2.0	150	16	38	41.3	14.2	M12 x 1.75 x 230	4,704 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3610-CA	M36 x 4.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	6,896 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3610-FA	M36 x 3.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	7,507 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3615-CA	M36 x 4.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	6,896 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3615-FA	M36 x 3.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	7,507 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3910-CA	M39 x 4.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	8,886 lbs.	3D CAD	3D CAD	STP FILE
EMLJ-3910-FA	M39 x 3.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	9,584 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3915-CA	M39 x 4.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	8,886 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3915-FA	M39 x 3.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	9,584 lbs.	2D CAD	3D CAD	STP FILE

Part #	A Thread	B	C	D	E	F	G	H	J	LOAD CAP.	2D CAD	3D CAD	STP
EMLJ-2050-FAM	M20 x 1.5	50	13	38	28.6	10.3	M8 x 1.25 x 100	19	38	1,453 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2050-CAM	M20 x 2.5	50	13	38	28.6	10.3	M8 x 1.25 x 100	19	38	1,247 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2475-FAM	M24 x 2.0	75	16	38	28.6	14.2	M12 x 1.75 x 140	25.4	38	2,377 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-2475-CAM	M24 x 3.0	75	16	38	28.6	14.2	M12 x 1.75 x 140	25.4	38	2,091 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3010-FAM	M30 x 2.0	100	16	38	41.3	14.2	M12 x 1.75 x 180	31.8	63.5	4,704 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3010-CAM	M30 x 3.5	100	16	38	41.3	14.2	M12 x 1.75 x 180	31.8	63.5	4,042 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3015-FAM	M30 x 2.0	150	16	38	41.3	14.2	M12 x 1.75 x 230	31.8	63.5	4,704 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3015-CAM	M30 x 3.5	150	16	38	41.3	14.2	M12 x 1.75 x 230	31.8	63.5	4,042 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3610-FAM	M36 x 3.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	31.8	63.5	7,507 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3610-CAM	M36 x 4.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	31.8	63.5	6,896 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3615-FAM	M36 x 3.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	31.8	63.5	7,507 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3615-CAM	M36 x 4.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	31.8	63.5	6,896 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3910-FAM	M39 x 3.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	31.8	63.5	9,584 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3910-CAM	M39 x 4.0	100	16	57	41.3	22.2	M20 x 2.5 x 180	31.8	63.5	8,886 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3915-FAM	M39 x 3.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	31.8	63.5	9,584 lbs.	2D CAD	3D CAD	STP FILE
EMLJ-3915-CAM	M39 x 4.0	150	16	57	41.3	22.2	M20 x 2.5 x 230	31.8	63.5	8,886 lbs.	2D CAD	3D CAD	STP FILE

E&E Metric Leveling Jack Features: Single point leveling and hold down through center, Adjustable, Standard product, Off-shelf delivery, Full range of sizes, Custom and US sizes also available.

E&E Special Products Metric Leveling Jacks are ideal for flexible machining. Its coaxial leveling and anchoring is used in Mills,Lathes,Transfer Lines,Machining Centers,Boring Mills, Grinders,Broaches,Fixtures,Screw Machines,Assembly Machines,Stamping Presses and Drill Presses.
